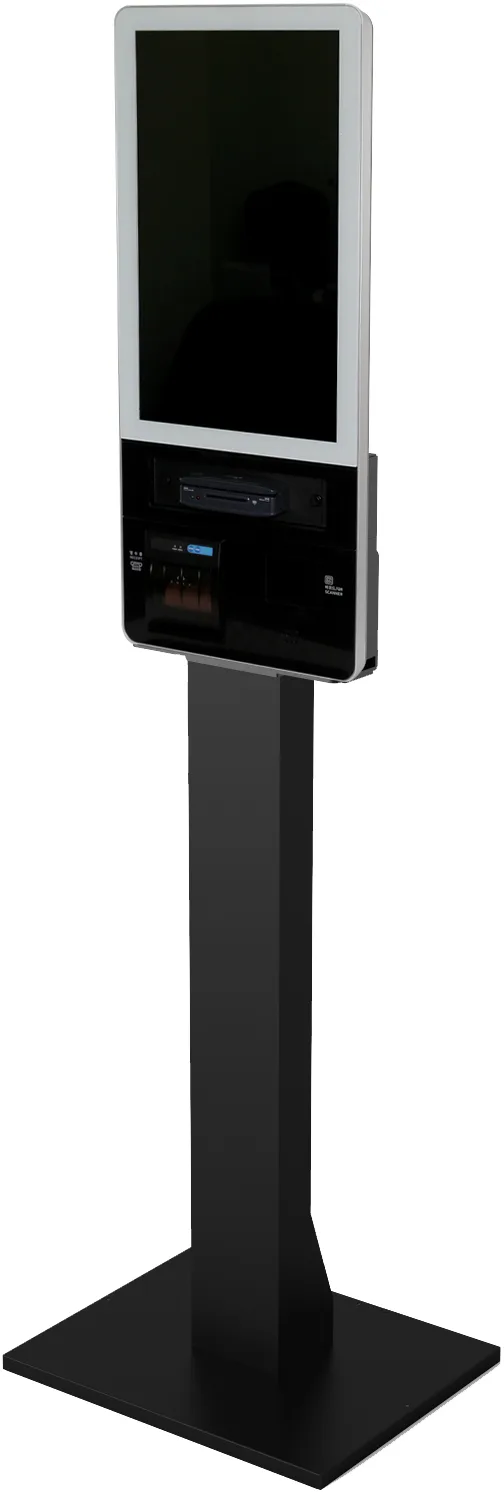

Nexa KIO-F21 21.5″ Kiosk

SKU: KIO-F21 In stock

Nexa 21.5″ Kiosk J4215 8GB 128GB Scn MSR Ptr Win10 EFT Brkt Floor Std

Processor: Intel® Celeron® Quad-core Processor J4215 2.0GHz(Fanless)
Chipset / BIOS:: Intel® Elkhart Lake SoC / AMI
Storage: 2.5" SATA III SSD 128GB
Memory: 8GB SO-DIMM, DDR4 2666MHz~3200MHz x 1 (Max 32GB, optional)
Graphics: Intel® UHD Graphics for 10th Gen Inte®l Processors
OS: Windows 10 loT Entry
Display Type: 21" LCD with WLED Backlight (1080 x 1920 resolution)
True-Flat Capacitive 10 Point Multi-Touch

USB: 6 x USB 2.0(Rear Top x 2, Rear Bottom x 4)
Serial: 6 (DB9 x 3, RJ50(RJ45 x 2, RJ11 x 1); COM1, 3, 5(DB9): +5V on pin #9, Selectable by BIOS; COM2, 4(RJ50, RJ45): +5V and +12V for Special Devices; COM6(RJ11): USB 2.0 and RS232 with +5V/1A for Card Reader
Audio: 1 x Audio-out / 3.5mm (Changeable for MIC)
Display: 1 x DisplayPort (Included 1 x USB 2.0/ Power Delivery +12V)
*Can be used for HDMI and DVI, VGA monitor by passive cable.
LAN: 1 x RJ45 (Base-T 10/100/1000 Ethernet)

12 months

Product overview

NEXA 21.5″ KIOSK J4215 8GB 128GB SCN MSR PTR WIN10 EFT BRKT

Compact robust and with all the typical optional extras included the KIO-F21 is the ideal Kiosk for Club Membership Kiosks Self Ordering and other forms of self service applications. .

Options included:
– Integrated 2D Barcode Scanner
– MSR
– 80mm Thermal Printer
– Eftpos Terminal Bracket
– Floor Stand
– Wind 10 IOT Preloaded

Specs:
– 21.5″ Screen
– 8GB RAM
– J4125 CPU
– 128GB SSD

**Note: Windows is included in the cost for this device**

Click here to download the product Specsheet(PDF)

Key details

Brand: Nexa
SKU: KIO-F21
Category: Hardware
System: Processor: Intel® Celeron® Quad-core Processor J4215 2.0GHz(Fanless)
Chipset / BIOS:: Intel® Elkhart Lake SoC / AMI
Storage: 2.5" SATA III SSD 128GB
Memory: 8GB SO-DIMM, DDR4 2666MHz~3200MHz x 1 (Max 32GB, optional)
Graphics: Intel® UHD Graphics for 10th Gen Inte®l Processors
OS: Windows 10 loT Entry
Display Type: 21" LCD with WLED Backlight (1080 x 1920 resolution)
True-Flat Capacitive 10 Point Multi-Touch
I/O Interfaces: USB: 6 x USB 2.0(Rear Top x 2, Rear Bottom x 4)
Serial: 6 (DB9 x 3, RJ50(RJ45 x 2, RJ11 x 1); COM1, 3, 5(DB9): +5V on pin #9, Selectable by BIOS; COM2, 4(RJ50, RJ45): +5V and +12V for Special Devices; COM6(RJ11): USB 2.0 and RS232 with +5V/1A for Card Reader
Audio: 1 x Audio-out / 3.5mm (Changeable for MIC)
Display: 1 x DisplayPort (Included 1 x USB 2.0/ Power Delivery +12V)
*Can be used for HDMI and DVI, VGA monitor by passive cable.
LAN: 1 x RJ45 (Base-T 10/100/1000 Ethernet)
Warranty: 12 months
