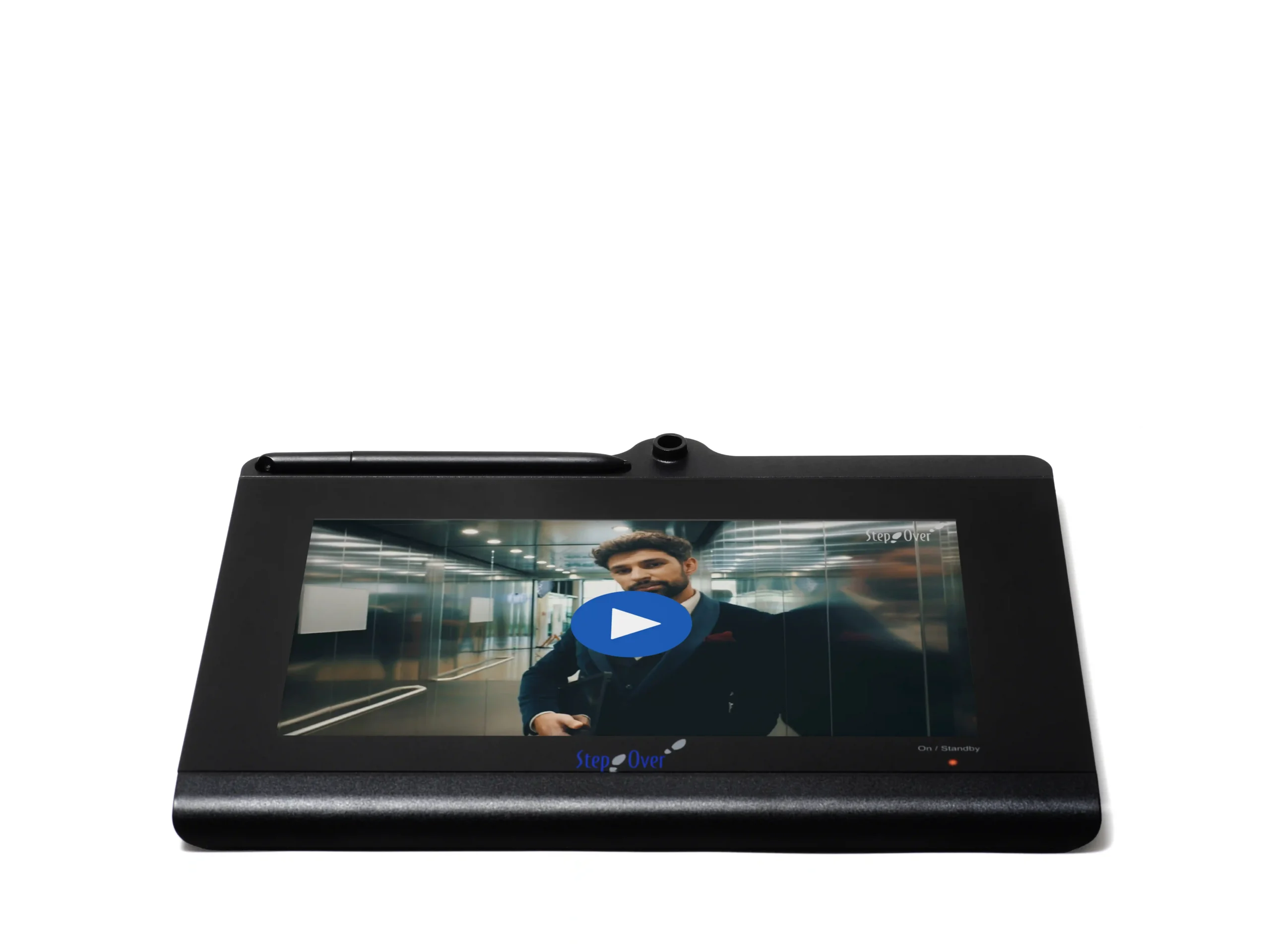

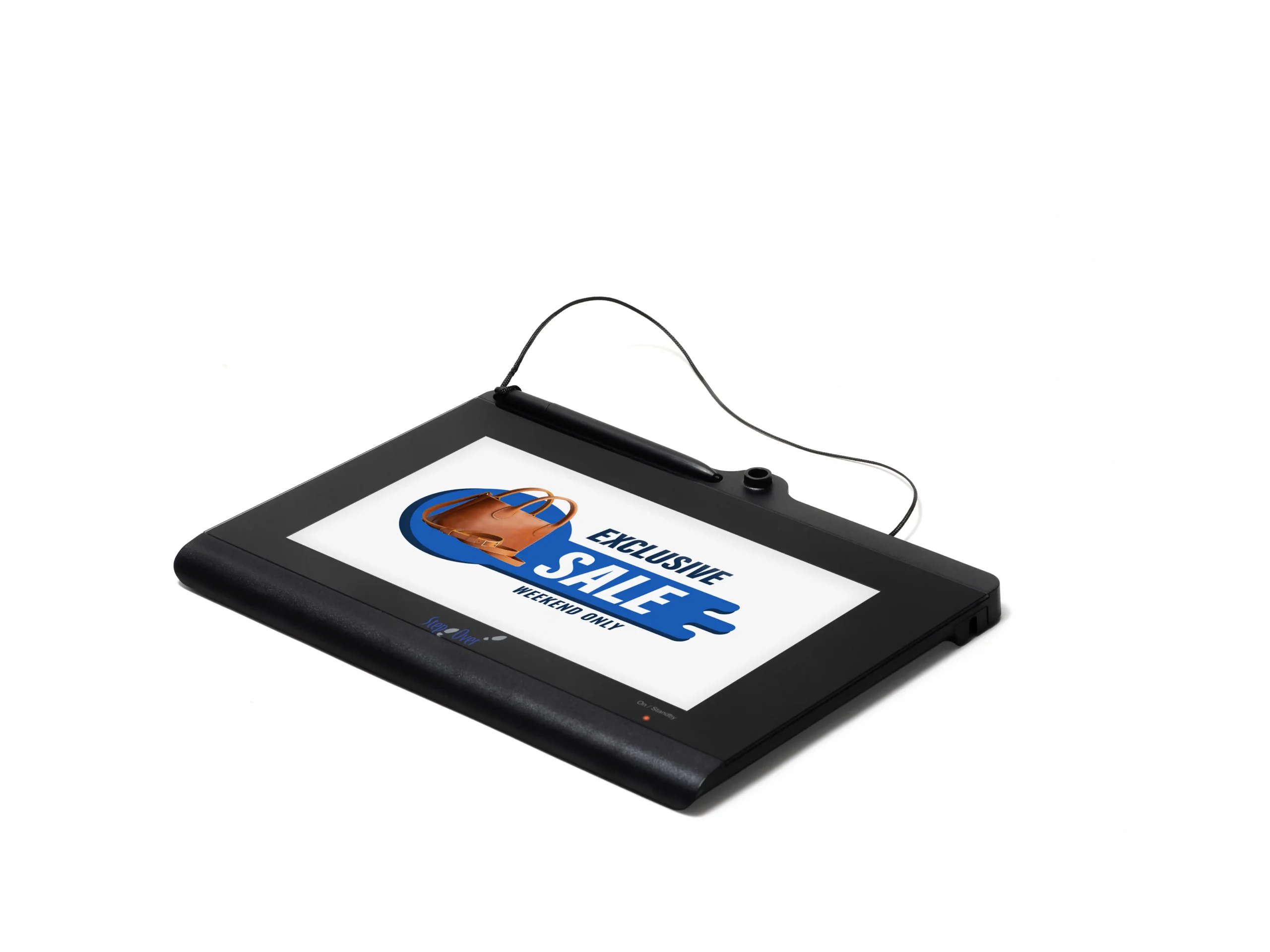

Stepover DuraSign10 inch next generation (NG) signature pad

The duraSign Pad NG 10 with color screen has been specially designed and manufactured for demanding and busy counter operations. Its simultaneously elegant and robust design with a 3mm thick polycarbonate ABS housing and large tempered glass surface in the writing area, makes this signature pad both a wear-resistant and good-looking solution for stationary use.

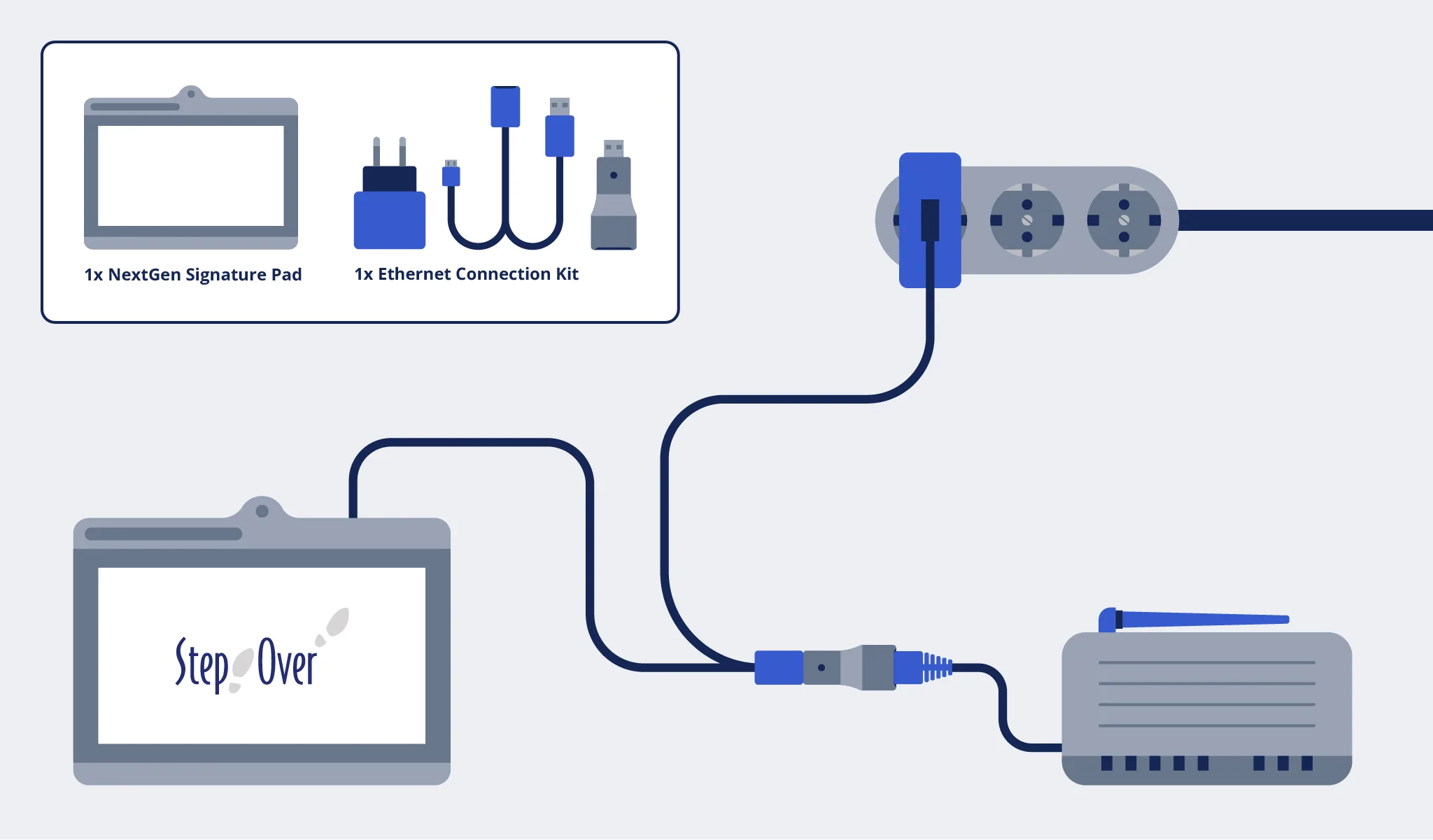

**To use the signature pad via the network, you need the Ethernet Connection Kit (International Plug)**

Highlights of the duraSign Pad NG 10

Flexibility

The duraSign Pad NG 10 can be used both stand-alone and with StepOver software products. A PDF document can be sent to the signature pad from any end device in the network via a browser. After the signature has been executed, the finished document is available on the end device for further use.

Network capability

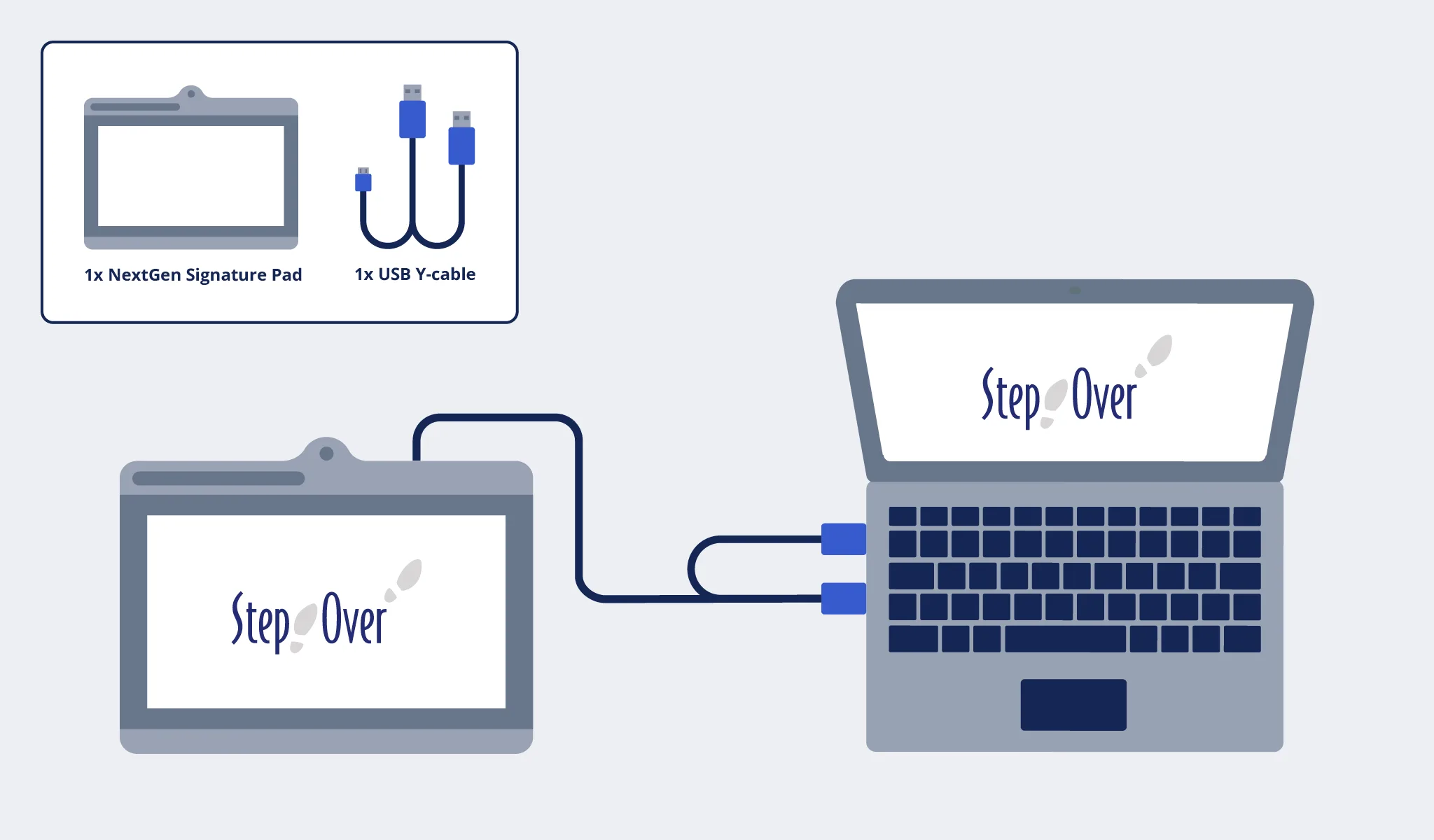

The signature pad communicates via its IP address. The pad offers a connection via Ethernet adapter (accessory) as well as USB. Thus, it is independent of the operating systems of the end devices and works together with Windows, MacOS or Linux, among others.

Stability and Performance

The duraSign Pad NG 10 is a complete signature unit in the network. Among other things, it is responsible for the display (rendering) of the PDF documents, the capture and encryption of the signature and the completion of the electronically signed documents. This minimizes communication between the signature pad and the end device and guarantees first-class performance, security and stability.

Easy Integration

In addition to operation via a browser, this signature pad can also be addressed via a programming interface and integrated into an existing application.

Highest Security

The signature pad is a complete signature capture device and secured on the network from unauthorized access. It has no open access and can only be accessed via its own website or the REST API interface. The device’s firmware is securely signed and protected from tampering. Updates take place using securely encrypted and signed firmware update files. The duraSign Pad NG 10 also has an opening detection feature that can detect when the case is opened.

The signature process runs completely in the signature pad:

• The biometric data of your signature (pressure, speed and writing direction) is captured by the pad and securely encrypted internally and linked to the signing document.
• The signature, including the encrypted biometric data, is inserted in full into the PDF document by the signature pad. To do this, the signature pad generates a checksum over the PDF using SHA256, which is then encrypted with a certificate (RSA 4096 bit).
• The inserted signature is ISO compliant and allows document integrity to be verified using freely available software (e.g. Acrobat Reader).

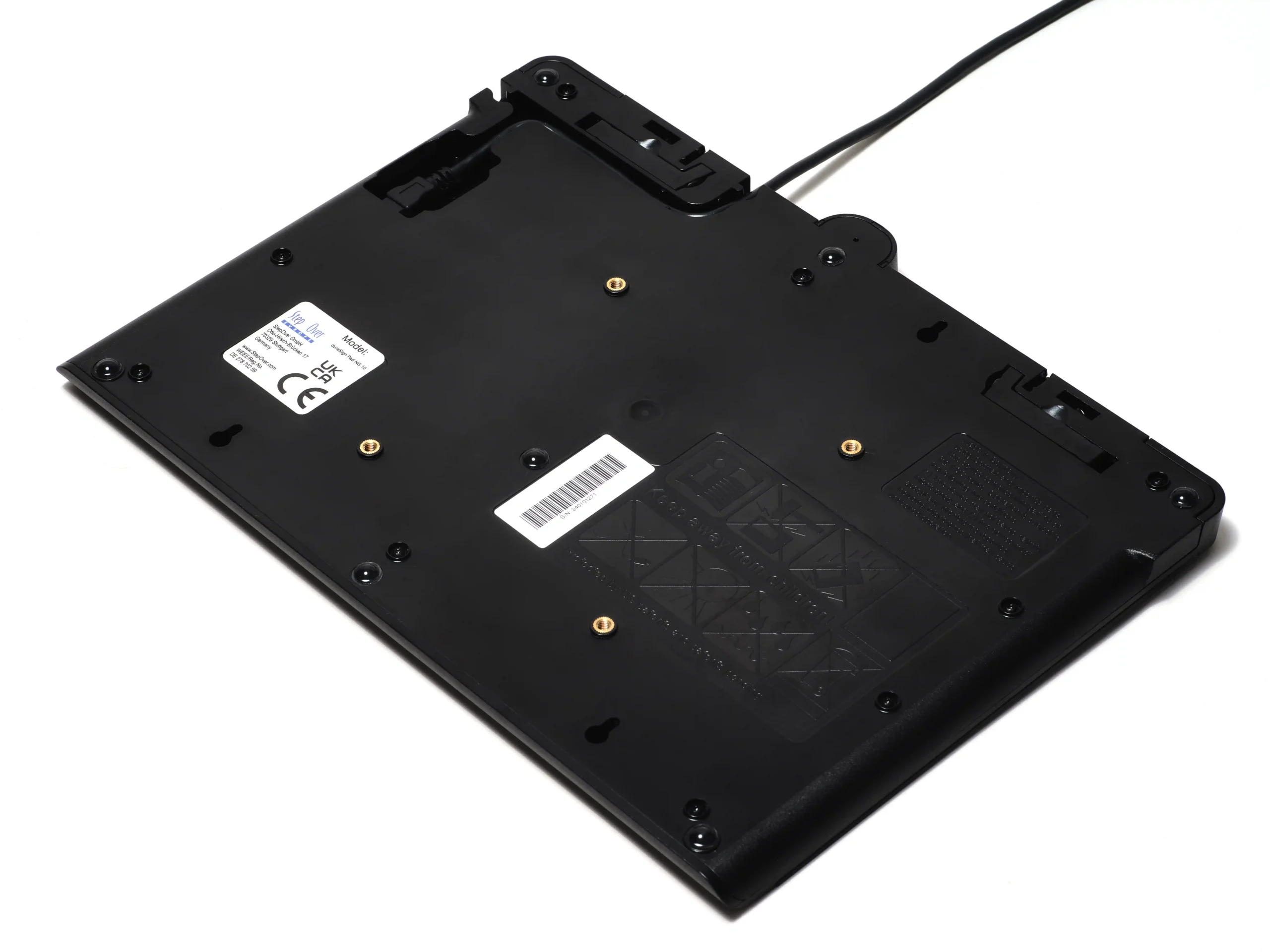

• To secure the duraSign Pad NG 10 against theft, it can be secured using a Kensington Lock (built-in Kensington slot) or alternatively mounted using a VESA Mount 100.

To secure the duraSign Pad NG 10 from theft, it can be secured using a Kensington Lock (built-in Kensington slot) or alternatively mounted using a VESA Mount 100.

eIDAS-compliant

This StepOver Signature Pad is suitable for setting up a system for advanced electronic signatures in accordance with eIDAS

Click here to download the product Specsheet(PDF)
